Square Aluminum Extrusion for LED Ribbon

Brand: Project SSSHH Incorporated
Model: PS-EXT-SQ-001
Ship Weight: 273.00g
Ship Dimensions: 1,220.00mm x 21.00mm x 21.00mm

$24.50

Available Options

Caps or Clips Only

Fastening Clips

End Caps

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description
Specifications

The PS-EXT-SQ-001 Square Aluminum Extrusion will fit our single width ribbon. The PMMA diffusion blends the light emitted from ProColour ribbon, creating a soft smooth glow.

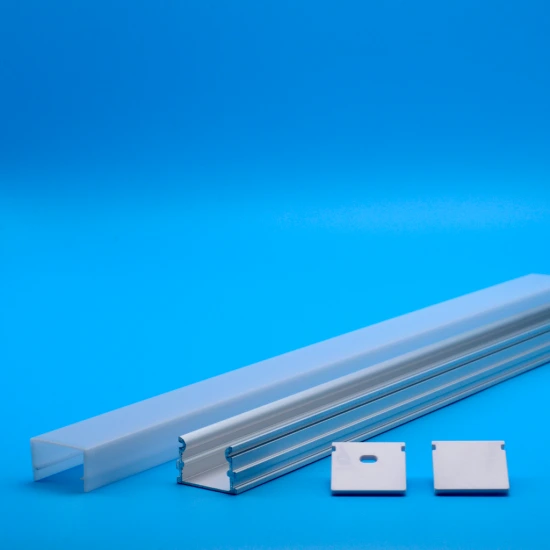

Each 4' length comes with two end caps (one with a hole for wire) and two clips.

Additional end caps and clips can be purchased using the options selectors.

Extrusion Details
Maximum Ribbon Width	16.8mm (0.66in)
Extrusion Base Material	Anodized Extruded Aluminum
Extrusion Lens Material	Extruded PMMA
End Cap Colour	White
Extrusion Attachment Type	Screw In Clip
Product Dimensions and Weights

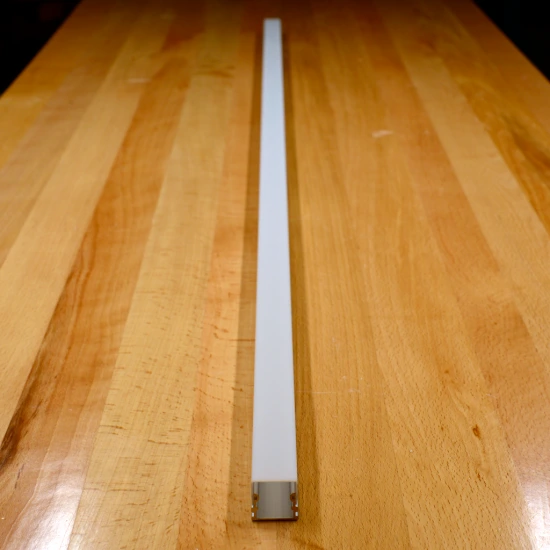

Length	1.22m (4 foot)
Width	21mm (0.83in)
Height	21mm (0.83in)
Weight (Typ.)	273g (0.6lbs)
Shipping Dimensions and Weights
Length	1.22m (4 foot)
Width	21mm (0.83in)
Height	21mm (0.83in)
Weight (Typ.)	273g (0.6lbs)
