Cine-Value 5.08mm Pluggable Header Connectors


















































- Brand: Project SSSHH
- Model: CV-CONN
- Ship Weight: 3.36g
- Ship Dimensions: 18.30mm x 10.16mm x 15.00mm
- SKU: CV-CONN
Available Options
We have been searching for well built off-shore 5.08mm connectors for a few years and have finally found one that meet stringent our criteria.
These connectors have excellent screw retention, allowing the gates to be open during shipping. This means you won't have to unscrew all of the gates before you put wire into these connectors. This is a valuable time saver.
Quality construction and fully marked 15A UL approval make these a serious contender for those that want to save a bit of money over the best 5.08mm pluggable headers on the market without concerns about early failure or questionable approvals and non-marked products.

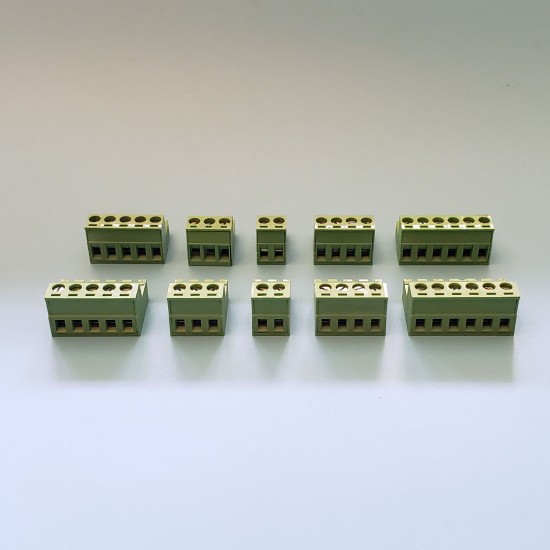

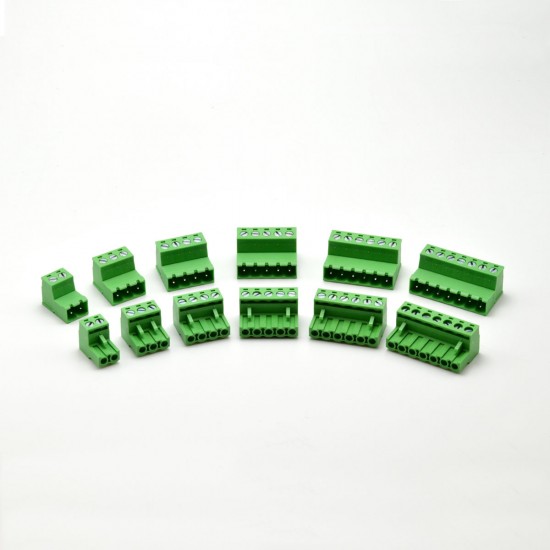

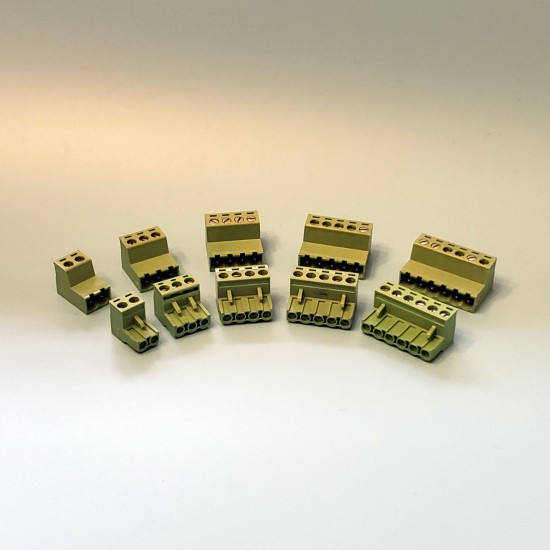

These are stocked in 2 conductor, 3 conductor, 4 conductor, 5 conductor, 6 conductor, and 7 conductor in both male and female pluggable screw terminal configurations (for other types, sizes and configurations please contact us for availability.)
Pricing:
2 conductor | $0.90ea |
3 conductor | $1.40ea |
4 conductor | $2.55ea |
5 conductor | $3.10ea |
6 conductor | $3.85ea |
7 conductor | $4.85ea |
Connector and Adapter Specifcations | |
Number of Positions | 2 through 6 available |
Connector Gender | Female and Male available |
Pitch | 5.08mm |
Conductor Sizes | 28 - 12 AWG |
Nominal Current | 15a |
Rated Voltage | 300V |
Flammability Rating | V0 to UL 94 standard |
Screw Type | 3mm Slot |
Torque Value | 0.5 - 0.6 Nm |
Wire Stripping Length | 7mm (0.28in) |
Shipping Dimensions and Weights | |
Length | Varies |
Width | Varies |
Height | Varies |
Weight (Typ.) | Varies |
Certifications | |
Electrical Certifications | cRUus (File Number: E330768) |
Core Product | |
Inventory Core Product | YES |
