5 conductor 5.08mm Female

Phoenix Contact 1757048 image
Phoenix Contact 1757048 image
Phoenix Contact 1757048 image
Core Product
Phoenix Contact 1757048 image
Phoenix Contact 1757048 image
Phoenix Contact 1757048 image

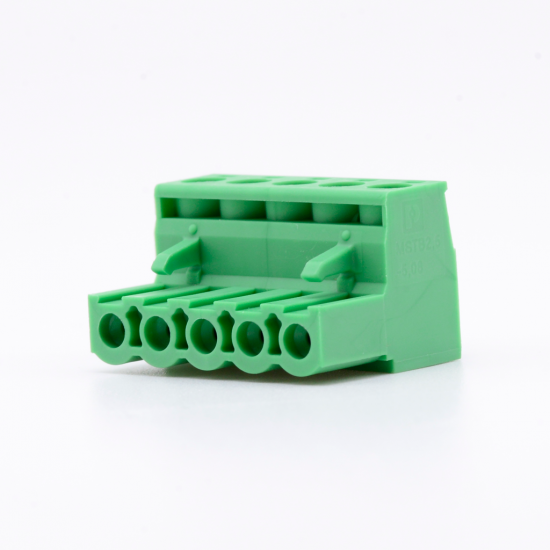

5 conductor 5.08mm Female
  • Brand: Phoenix Contact
  • Model: PC-508-5PF
  • Ship Weight: 8.26g
  • Ship Dimensions: 18.30mm x 25.40mm x 15.00mm
  • MPN: 1757048
$4.50

Updated Pricing!

The true and original Phoenix Contact 5 conductor socket connector is the perfect connector for creating custom fixtures and extensions. The flexibility offered by it's robust screw terminals in unmatched.

This is the original Phoenix Contact part number 1757048, no offshore imitations! Choose Phoenix Contact for their fantastic build quality, best Quality Assurance in the business and their Canadian and US UL Certification. Accept no imitations!

Details:

  • Conductors: 5
  • Socket connector (female)
  • Spacing: 5.08mm
  • CSA UL Certification


Connector and Adapter Specifcations
Number of Positions5
Connector GenderFemale
Pitch5.08mm
Conductor Sizes28 - 12 AWG
Nominal Current15a
Rated Voltage300V
Flammability RatingV0 to UL 94 standard
Screw Type3mm Slot
Torque Value0.5 - 0.6 Nm
Wire Stripping Length7mm (0.28in)
Shipping Dimensions and Weights
Length18.3mm (0.72in)
Width25.4 (1.0in)
Height15mm (0.59in)
Weight (Typ.)8.26 grams
Certifications
Electrical Certifications

CSA (File Number: 013631_0_000)

cRUus (File Number: E60425)

Core Product
Inventory Core ProductYES
General
Additional Notes
