Mean Well 12vDC 22a power supply

Mean Well 12vDC 22a power supply
Core Product 12Vdc

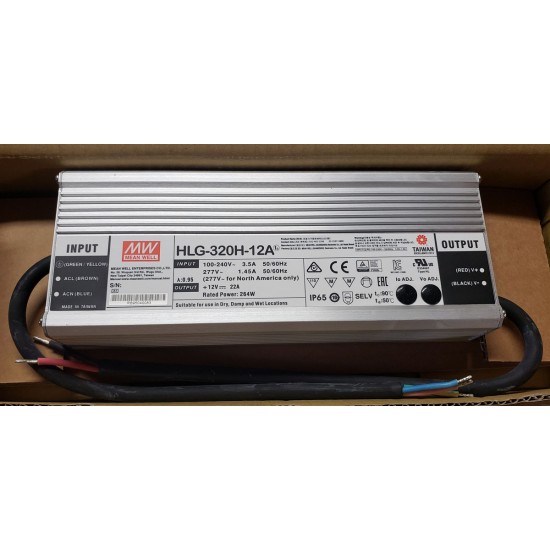

Mean Well 12vDC 22a power supply
  • Brand: Mean Well
  • Model: HLG-320H-12A
  • Ship Weight: 1.88kg
  • Ship Dimensions: 252.00mm x 90.00mm x 44.00mm
  • MPN: HLG-320H-12A
$160.00

Available Options

The Mean-Well HLG-320H-12A power supply is a highly reliable 12Vdc 264W power supply with a single 2 wire 12Vdc output.

Features:
  • Universal AC input
  • Active PFC function
  • Level VI energy efficiency
  • <0,5W no load power consumption
  • Short Circuit / Overload / Over voltage / Over temperature protection
  • Silent Fan-less Design
  • LED power indicator
Optional Black Hospital Grade plug end  (not installed) can be purchased.

**Please note: based on availability these may be substituted with HLG-320H-12 power supplies.



Power Input / Output
Power Input85-264vAC, 120-370vDC
Power Consumption (Typ.)3A @ 115vAC, 1.5A @ 230vAC
Power Output10.8-13.5Vdc
Max. Output Current22a
Power Supply Specifications
Power Factor (Typ.)

PF>0.98 / 115VAC at full load , PF>0.95 / 230VAC

Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section in Specification Sheet for full details

Overload ProtectionHiccup mode @ 105-135% rated output, recovers automatically after fault condition is removed
Over Voltage ProtectionShut down on over voltage, re-power on to recover
Over Temp. ProtectionShut down on overtemp, re-power on to recover
Connector and Adapter Specifcations
Output ConnectorBare Wires
Shipping Dimensions and Weights
Length252mm
Width90mm
Height43.8mm
Weight (Typ.)1.88Kg
Certifications
Electrical Certifications
  • UL8750(type”HL”)
  • CSA C22.2 No. 250.0-08
Core Product
Inventory Core ProductYES
General
Additional NotesInput connector not included
FileSize
HLG-320H-SPEC.PDF897.22KB Download
