Mean Well 12vDC 21a power supply

Core Product 12Vdc

Mean Well 12vDC 21a power supply

Brand: Mean Well Enterprises Co. Ltd.
Model: GST280A12-C6P
Ship Weight: 982.00g
Ship Dimensions: 9.75in x 3.75in x 2.25in

$155.00

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

The GST280A12-C6P power supply is a highly reliable 280W power supply with a single 6-pin Molex connector. At 12vDC the power supply provides 21a of DC power through a single 6-pin Molex connector which is ideally mated with the ProSpeed 4-LITE High Speed LED Dimmer.

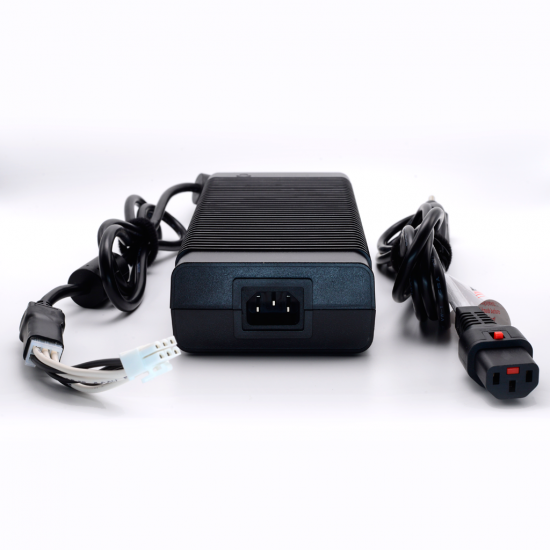

We supply the GST280A12-C6P with a Schaffner Locking AC Cord which eliminates pullouts of the IEC connector, a Molex adaptor that matches the pinouts of our ProSpeed 4-LITE and two cable wraps.

Features:

Universal AC input
Active PFC function
Level VI energy efficiency
<0,5W no load power consumption
Short Circuit / Overload / Over voltage / Over temperature protection
Silent Fan-less Design
LED power indicator

Power Input / Output
Power Input	85-264vAC, 120-370vDC
Power Consumption (Typ.)	3A @ 115vAC, 1.5A @ 230vAC
Power Output	12vDC
Max. Output Current	21a
Power Supply Specifications
Power Factor (Typ.)	PF>0.98 / 115VAC at full load , PF>0.95 / 230VAC
Overload Protection	Hiccup mode @ 105-135% rated output, recovers automatically after fault condition is removed
Over Voltage Protection	Shut down on over voltage @105-135% rated output, re-power on to recover
Over Temp. Protection	Shut down on overtemp, re-power on to recover
Connector and Adapter Specifcations
Output Connector	6-pin Molex Mini-Fit Jr
Shipping Dimensions and Weights
Length	247.65mm (9.75in)
Width	95.25mm (3.75in)
Height	57.15mm (2.25in)
Weight (Typ.)	982 grams
Certifications
Electrical Certifications	cULus (UL62368-1)
Core Product
Inventory Core Product	YES
General
Additional Notes
