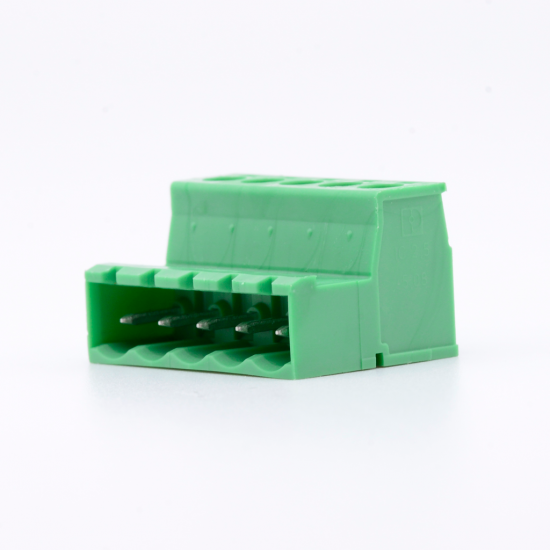

5 conductor 5.08mm Male
The true and original Phoenix Contact 5 conductor pin connector is the perfect connector for creating custom fixtures and extensions. The flexibility offered by it's robust screw terminals is unmatched.
This is the original Phoenix Contact part number 1786200, no offshore imitations!
Choose Phoenix Contact for their fantastic build quality, best Quality
Assurance in the business and their Canadian and US UL Certification.
Accept no imitations!
|Connector and Adapter Specifcations|
|Number of Positions||5|
|Conductor Sizes||28 - 12 AWG|
|Flammability Rating||V0 to UL 94 standard|
|Screw Type||3mm Slot|
|Torque Value||0.5 - 0.6 Nm|
|Wire Stripping Length||7mm (0.28in)|
|Shipping Dimensions and Weights|
|Weight (Typ.)||8.28 grams|
CSA (File Number: 013631_0_000)
cRUus (File Number: E60425)
|Inventory Core Product||YES|
|Additional Notes||In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.|
