Mean Well 12vDC Class 2 power supply

Mean Well 12vDC 5a Class 2 power supply
Core Product 12Vdc

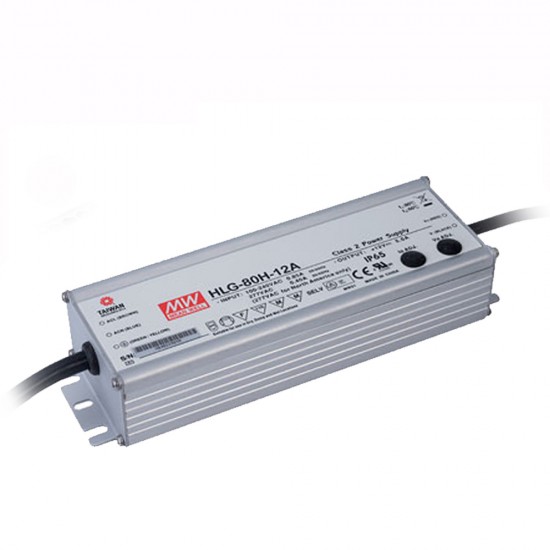

Mean Well 12vDC Class 2 power supply
  • Brand: Mean Well
  • Model: HLG-80H-12A
  • Ship Weight: 0.84kg
  • Ship Dimensions: 195.60mm x 61.50mm x 38.80mm
  • MPN: HLG-80H-12A
$65.00

Available Options

The Mean-Well HLG-80H-12A power supply is a highly reliable 12Vdc 60W power supply with a single 2 wire 12Vdc output.

Features:
  • Universal AC input
  • Class 2 Power Unit
  • IP67 / IP65 rating for indoor or outdoor installations
  • Active PFC function
  • Level VI energy efficiency
  • <0,5W no load power consumption
  • Short Circuit / Overload / Over voltage / Over temperature protection
  • Silent Fan-less Design
  • LED power indicator
Optional Black Hospital Grade plug end  (not installed) can be purchased.
Power Input / Output
Power Input90 ~ 305Vac, 127-431Vdc
Power Consumption (Typ.)0.85A @ 115Vac, 0.425A @ 230Vac
Power Output7.2-12Vdc
Max. Output Current5A
Power Supply Specifications
Power Factor (Typ.)

PF>0.96 / 115VAC at full load

Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section in Specification Sheet for full details

Overload ProtectionHiccup mode @ 105-135% rated output, recovers automatically after fault condition is removed
Over Voltage ProtectionShut down on over voltage, re-power on to recover
Over Temp. ProtectionShut down on overtemp, re-power on to recover
Connector and Adapter Specifcations
Output ConnectorBare Wires
Shipping Dimensions and Weights
Length195.6mm
Width61.5mm
Height38.8mm
Weight (Typ.)0.84kg
Certifications
Electrical Certifications
  • UL8750(type”HL”)
  • CSA C22.2 No. 250.0-08
  • Class 2 Power Supply
Core Product
Inventory Core ProductYES
General
Additional NotesInput connector not included.
FileSize
HLG-80H-SPEC.PDF776.75KB Download
